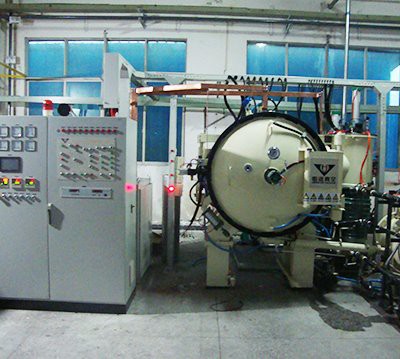

High Temperature Vacuum Sintering Furnace
High temperature vacuum sintering furnace is used in powder metallurgy industry and vacuum sintering of various magnetic materials. Because the furnace is installed in a protective atmosphere, it can reduce the oxidation of materials during the charging process and provide a reliable guarantee for the production of high-performance products
- Product Introduction
A brief description:
High Temperature Vacuum Sintering Furnace is used in powder metallurgy industry and vacuum sintering of various magnetic materials. Because the furnace is installed in a protective atmosphere, it can reduce the oxidation of materials during the charging process and provide a reliable guarantee for the production of high-performance products. The control system is controlled by PLC, and the intelligent temperature controller controls the temperature. The control is accurate and the degree of automation is high. It can realize automatic/manual non-disturbance switching and abnormal alarm functions, and the operation is simple and reliable.
High temperature vacuum sintering furnace mainly includes:
According to the temperature, it is divided into several temperature ranges of 1300 degrees, 1450 degrees, 1600 degrees, 1800 degrees, and 2000 degrees or more. The materials and heating structures used at different temperatures are different. It is suitable for magnetic materials, powder metallurgy (stainless steel, mim), hard alloy, Sintering or processing of various materials such as cermets, silicon carbide, and refractory metals
1. 1300 degree sintering furnace, mainly used for magnetic materials, vacuum sintering for powder metallurgy industry and various magnetic materials. Can be equipped with protective charging glove box.
2. The two ends of the mobile glove box with glove box can be connected with the user's turnover car and the vacuum sintering furnace respectively. The glove box can be moved horizontally and vertically, and can be connected with multiple vacuum sintering furnaces, so that one glove box can be Multiple vacuum sintering furnaces are charged. The two glove boxes share one track, forming two vacuum sintering furnaces, which occupies a small area and saves costs.
|
Model
|
Average temperature zone size |
Maximum design temperature |
Ultimate vacuum |
Boost rate |
Temperature zone uniformity
|
Carrying capacity |
|
SRVS-300G |
600×500×1100 |
1300 |
2×10-3 |
0.5 |
±3 |
300 |
| SRVS-500G |
600×500×1400 |
1300 |
2×10-3 |
0.5 |
±3 |
300 |
The silicon carbide sintering furnace is used for the reaction sintering of silicon carbide products, the maximum temperature is 1800 degrees, the ultimate vacuum degree is 5x10-1pa, the thermal insulation layer is a composite structure of graphite plate and carbon felt, and the heating chamber is in a closed form to prevent the overflow of silicon vapor and heat the material. For graphite, there is an aerated debinding system.
|
High Temperature Vacuum Sintering Furnace technical indicators |
|||||
|
model |
Average temperature zone size |
boost rate |
Furnace temperature uniformity |
Carrying capacity |
total installed power |
|
446 |
400x400x600 |
0.5 |
±5 |
100 |
150 |
|
4413 |
400x400x1300 |
0.5 |
±5 |
200 |
210 |
|
5514 |
500x500x1400 |
0.5 |
±5 |
300 |
280 |
|
8812 |
800x800x1200 |
0.5 |
±5 |
800 |
400 |
|
7732 |
720x750x3200 |
0.5 |
±5 |
2500 |
710 |
|
8840 |
850x850x4000 |
0.5 |
±5 |
4000 |
900 |
4. Vacuum degreasing and sintering furnace is mainly used for vacuum or carrier gas degreasing before sintering of stainless steel base, cemented carbide, high temperature alloy, high specific gravity alloy, cermet, carbide, boride, oxide, intermetallic compound and oxide ( wax) and high temperature sintering.
|
Technical Specifications of High Temperature Vacuum Sintering Furnace |
||||||
|
Model |
Average temperature zone size |
maximum design temperature |
Ultimate vacuum |
boost rate |
Heated room temperature zone uniformity |
Carrying capacity |
|
RVSTZ-225 |
200x200x500 |
1600 |
6.67E-1--6.67E-3 |
0.5 |
±5 |
500 |
|
RVSTZ-337 |
300x300x700 |
1600 |
6.67E-1--6.67E-3 |
0.5 |
±5 |
100 |
|
RVSTZ-4410 |
400x400x1000 |
1600 |
6.67E-1--6.67E-3 |
0.5 |
±5 |
200 |
|
RVSTZ-4415 |
400x400x1500 |
1600 |
6.67E-1--6.67E-3 |
0.5 |
±5 |
300 |
|
RVSTZ-5520 |
500x500x2000 |
1600 |
6.67E-1--6.67E-3 |
0.5 |
±5 |
500 |
Multi-chamber continuous furnace (multi-chamber continuous vacuum furnace) is mainly used for aging treatment of aluminum alloy, copper alloy and iron-based alloy. It is composed of multiple units (multi-chambers) with different functions and temperatures connected in series. The charge passes through each unit according to a certain production rhythm to complete the entire production process, with good product consistency and high production efficiency.
